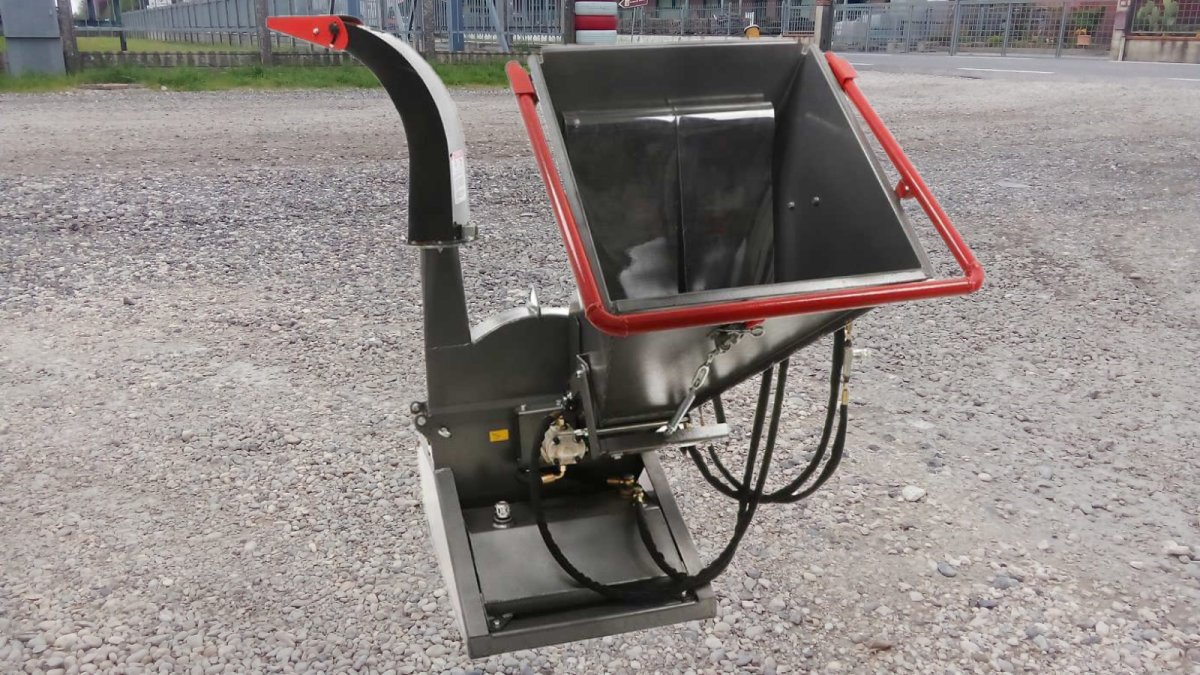

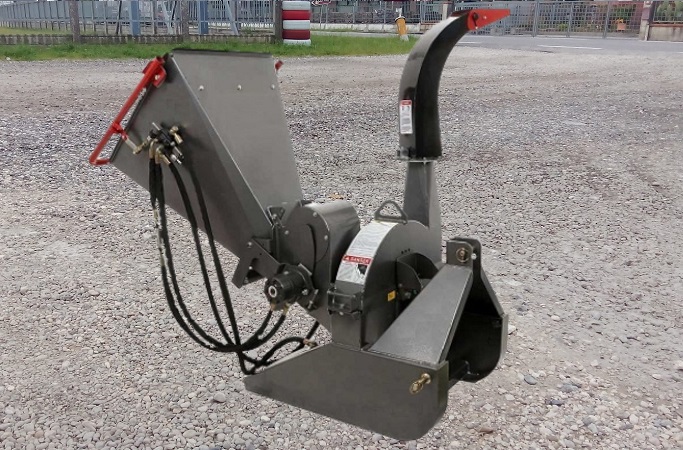

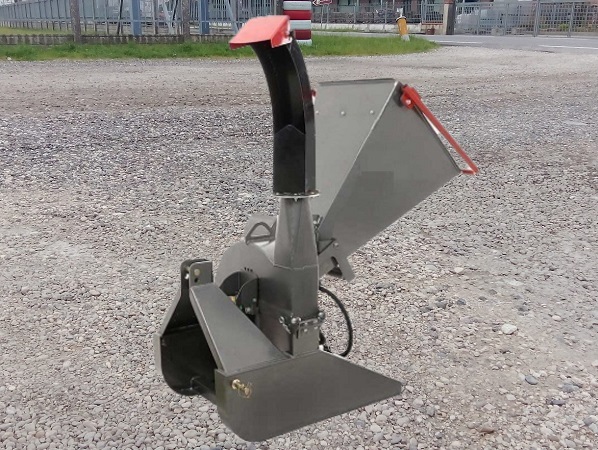

Hydraulic wood chipper for tractor "IS100 Hydro"
Wood chipper to be connected to the tractor WITH INDEPENDENT OIL TANK AND HYDRAULIC DRIVING ROLLER model "IS100 Hydro"
Our "IS100 Hydro" WITH INDEPENDENT HYDRAULIC OIL TANK is a cardan wood chipper WITH DRAG ROLLER which facilitates and guides the insertion of branches inside the large 50 x 50 cm loading mouth.
Driven by cardan shaft, IT HAS AN INDEPENDENT HYDRAULIC TANK AND IS ALSO SUITABLE FOR TRACTORS THAT DO NOT HAVE AN AUXILIARY HYDRAULIC SYSTEM, it is equipped with a hydraulic drive roller to facilitate loading, the drive roller can adjust the forward speed, the drive pressure and rotation reversal in order to easily release any jams of the twigs to be chipped
This chipper is suitable for chipping branches and shrubs up to a maximum diameter of 100 mm. for the block in solid wood, while for the bundles of twigs we reach larger diameters
Excellent value for money for this chipper for professional use
The chipper is equipped with a large loading mouth so as to facilitate the loading of the material to be chipped
Suitable for chipping the most varied types of wood
| TECHNICAL SPECIFICATIONS |

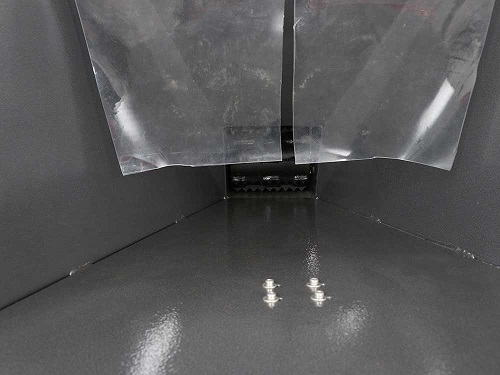

| Insertion assisted by a toothed drive roller |

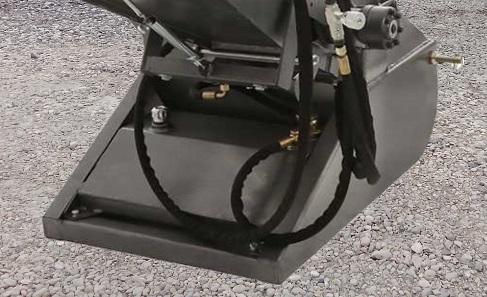

| Independent 20 liter hydraulic oil tank |
| Adjustment of drive roller pressure |

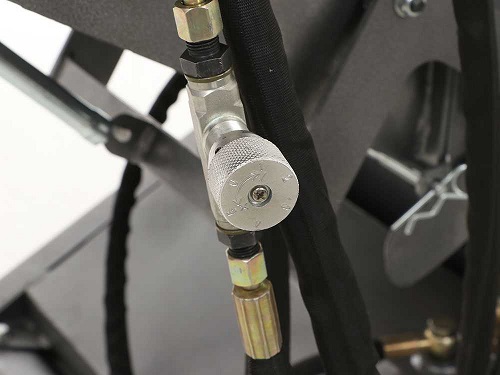

| Adjustable drive roller speed |
| Lever for starting, reversing and stopping the drive roller |

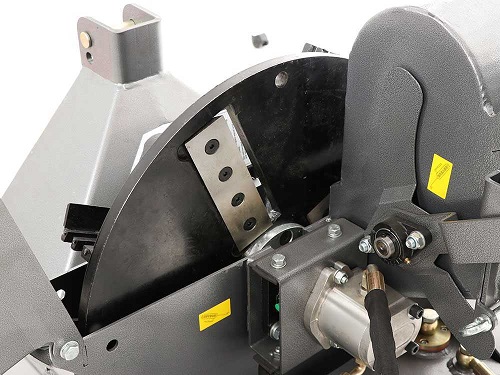

| Dynamically balanced cutting disc |
| 4 special steel knives + 1 counter knife |
| Maximum diameter of chipable material 100 mm |
| Cut material 7 - 8 m3/h (variable according to the type of wood) |
| Weight 320 kg |
| PTO 540 r.p.m. |
OPTIONAL:
Non-binding indicative data
